Blemished Boston Whaler Classic Bow Light (1958-1984), Navigation Light With Chock (Led) 316 Stainless *Not Perko* -Final Sale
Blemished Boston Whaler Classic Bow Light (1958-1984), Navigation Light With Chock (Led) 316 Stainless *Not Perko* -Final Sale
Blemished Boston Whaler Classic Bow Light (1958-1984), Navigation Light With Chock (Led) 316 Stainless *Not Perko* -Final Sale
Blemished Boston Whaler Classic Bow Light (1958-1984), Navigation Light With Chock (Led) 316 Stainless *Not Perko* -Final Sale
Blemished Boston Whaler Classic Bow Light (1958-1984), Navigation Light With Chock (Led) 316 Stainless *Not Perko* -Final Sale
Blemished Boston Whaler Classic Bow Light (1958-1984), Navigation Light With Chock (Led) 316 Stainless *Not Perko* -Final Sale

Blemished Boston Whaler Classic Bow Light (1958-1984), Navigation Light With Chock (Led) 316 Stainless *Not Perko* -Final Sale

SKU : B-BL-1-3"

Please read the blemished product disclaimer here prior to calling for assistance!  • This item is now an E10 LED! • Uses only a fraction of the power of conventional bulbs! • Shines much brighter than conventional bulbs! • Will last over 50,000 hours of continuous use!  • Virtually indestructible and... Read More

Regular price $209 $179

Information on next inventory release can be found via the home page.

If the bow hatch for your interior is out of stock you may select "no bow hatch" to order the interior now then sign up for an alert for the bow hatch.

There are no pre-orders however, you can sign up for IN STOCK alerts via the green tab on the right side of this page by the vertical cursor bar.

Secure Checkout With

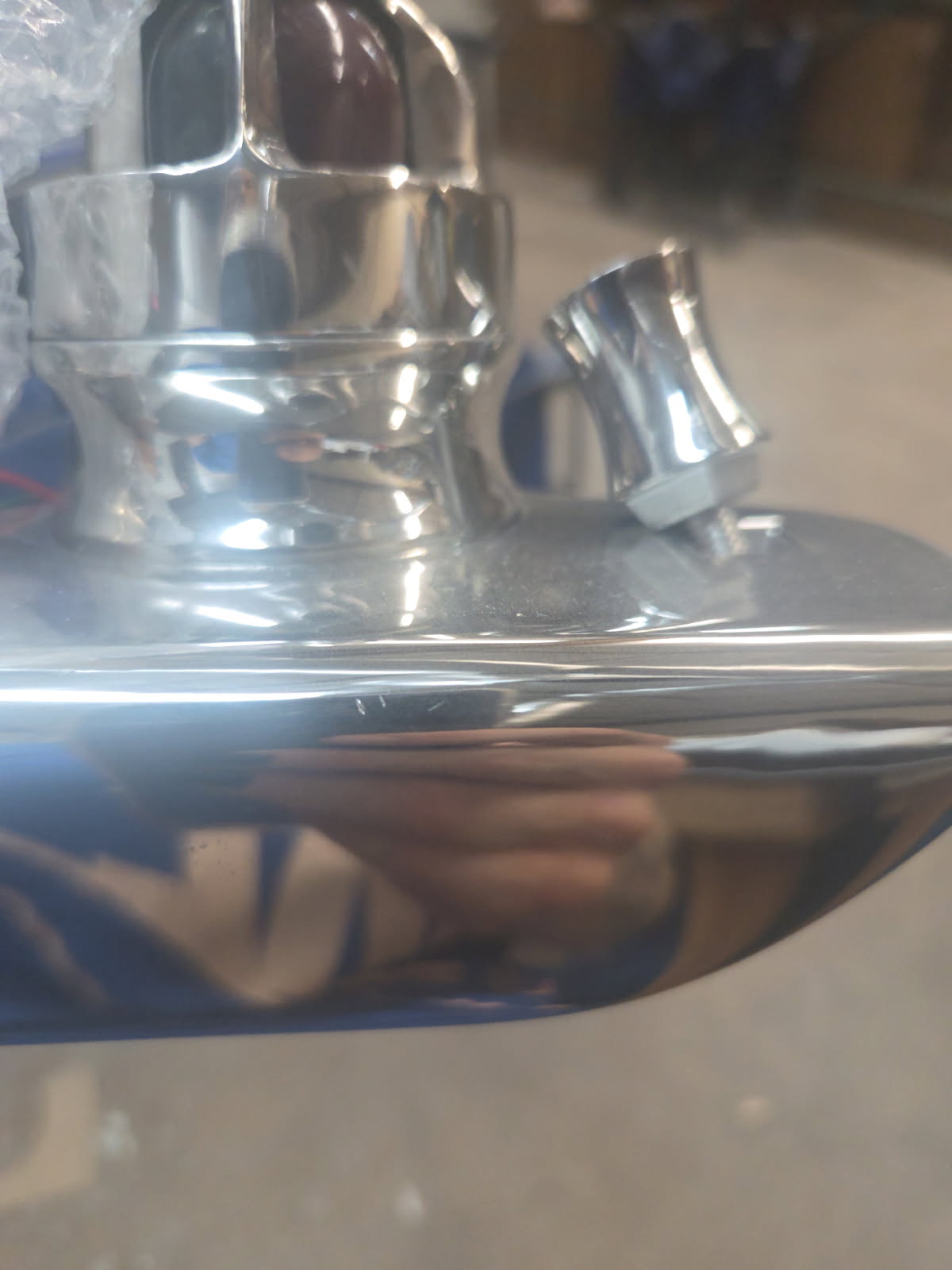

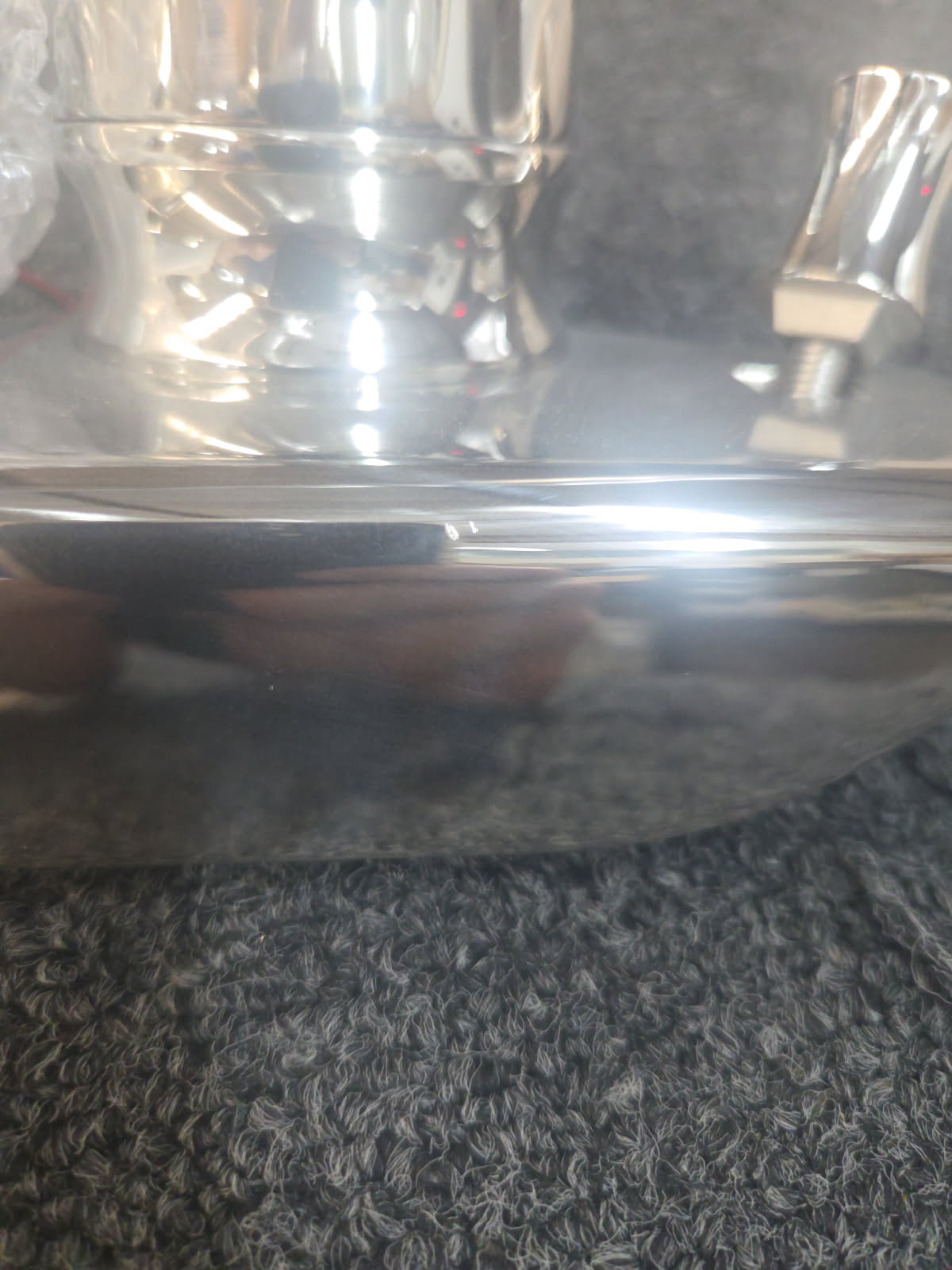

Please read the blemished product disclaimer here prior to calling for assistance!

 • This item is now an E10 LED!

• Uses only a fraction of the power of conventional bulbs!

• Shines much brighter than conventional bulbs!

• Will last over 50,000 hours of continuous use!

• Virtually indestructible and will hold up to the harsh marine environment!

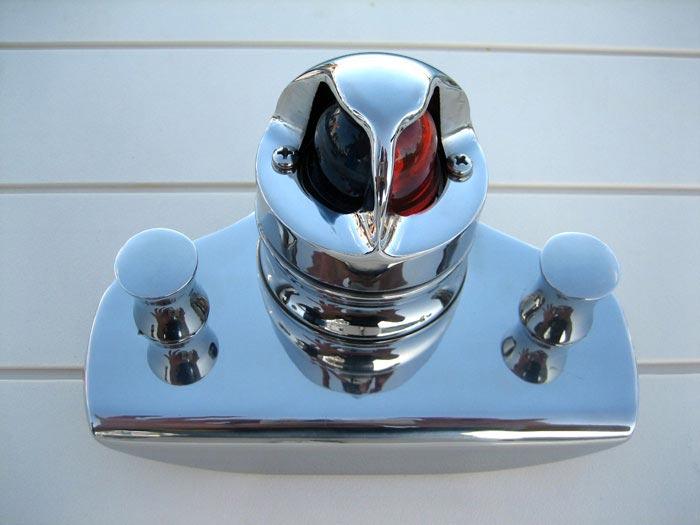

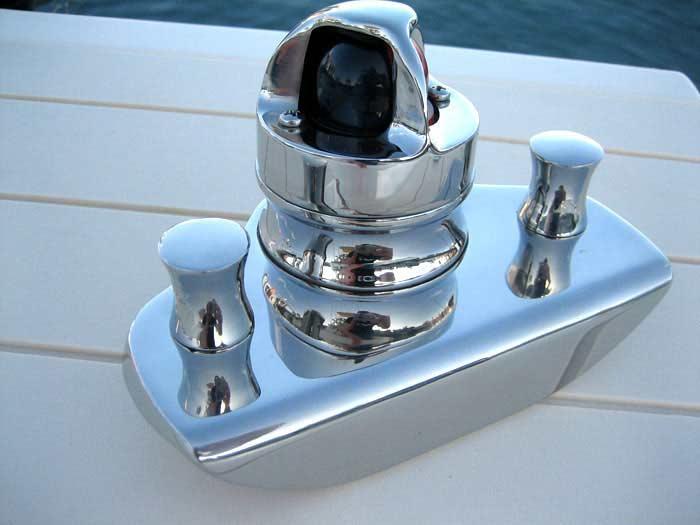

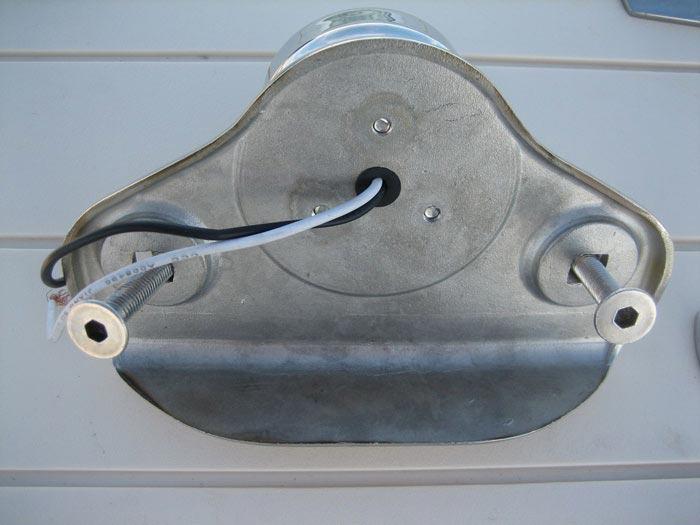

BLEMISHED Vintage style (NOT PERKO) navigation bow light used on 17' Classic Boston Whalers from 1958 to approximately 1984 when Boston Whaler began outsourcing to Perko. Made from high quality, mirror polished true 316 stainless steel, some vendors advertise stainless items as 316, although they are an inferior 304 which costs much less. This item is also equipped with a 12 volt LED (light emitting diode) light source, which is far superior to conventional bulbs. 14 gauge wire is the most common but 16-18 can also be used.  Requires a 3 amp fuse when wired separately, 7.5 amp when wiring with stern light. Studs are 2.25"-3" depending on boat.  Includes all necessary mounting hardware. Will fit most models of classic Boston Whalers and other boats with similar dimensions.

Dimensions: 6 5/8" wide x 4" deep x 3" high

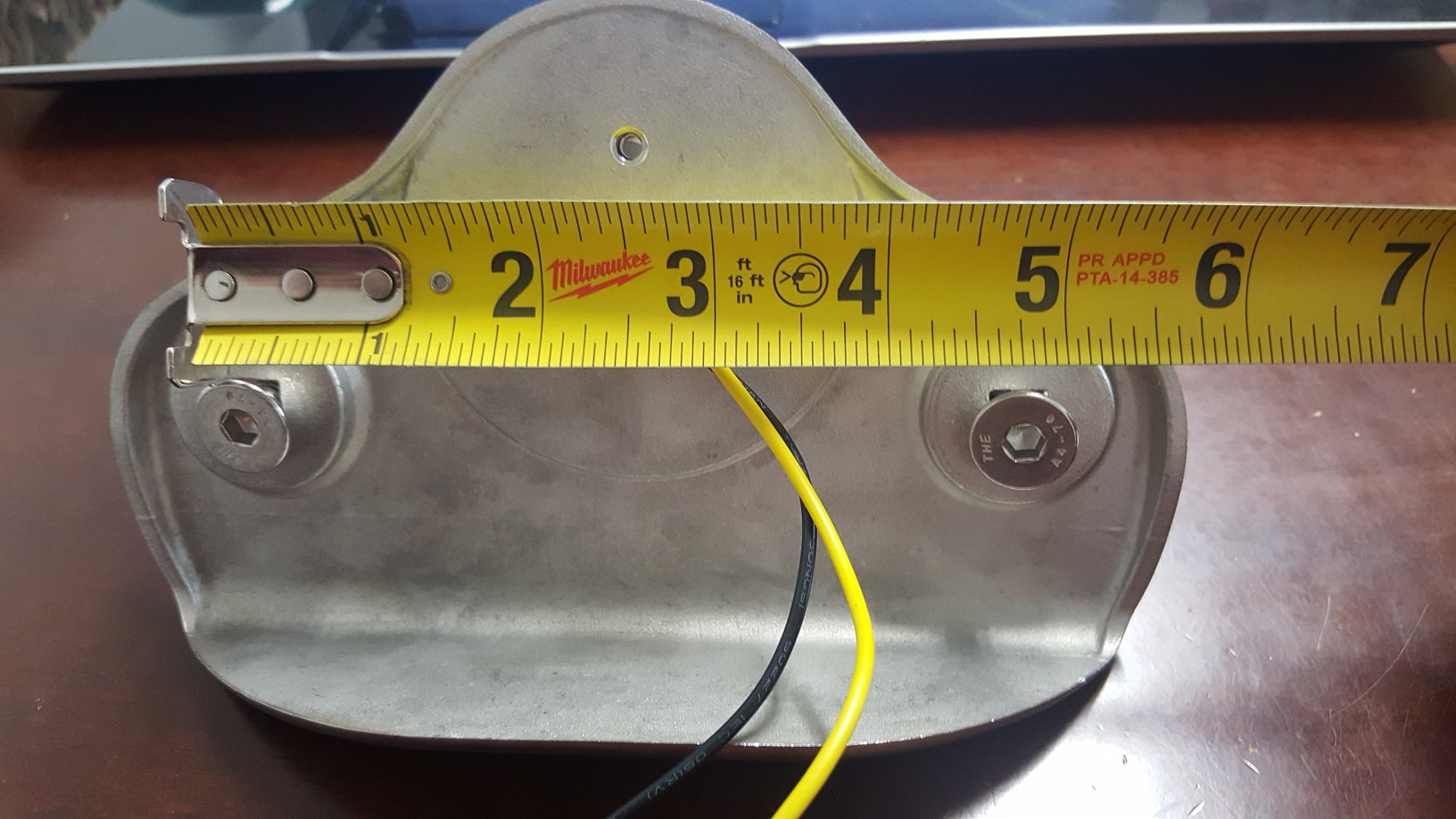

Outside dimensions of through bolt holes: 5" (shown in last picture)

Note:  To seal water from the base of the light caulking will be required

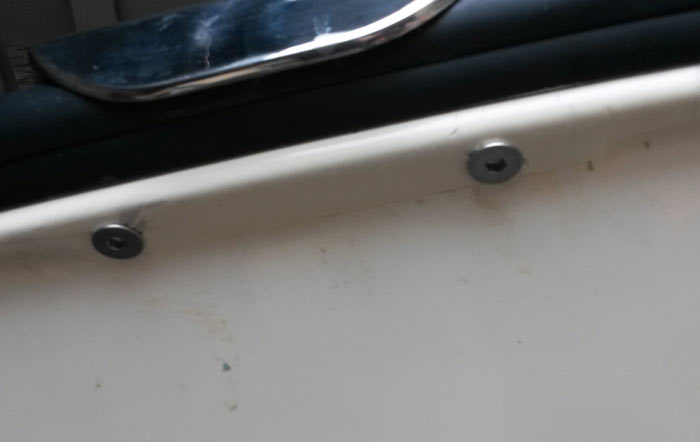

Note:  If you have a single piece glue on rub rail you will need to select the 17' hull from the drop down to get the longer 3" studs.  If you have a 17' hull with the metal backing plate in the gunnel, you may need to source a M8x1.25x89mm stud.

NoteThe 12V LED bulbs use approximately 1.5 - 2 amps.  16-18 gauge wiring can be used but will be larger than necessary, In this instance,, you can simply snip off some strands to reduce the gauge and then use butt connectors.

Installation Instructions

LED Bulb Instructions
